What are the different modulation schemes that are being considered for 6G?

As 6G technology is still in the early stages of research and development, the specific modulation schemes for its deployment have not been standardized. However, several modulation schemes are being considered and studied by researchers and industry experts for potential use in 6G networks. Here are some of the modulation schemes that are being explored:

1. Orthogonal Frequency Division Multiplexing (OFDM): OFDM is a widely used modulation scheme in current wireless communication systems, including 4G and 5G. It divides the available spectrum into multiple orthogonal subcarriers and transmits data simultaneously across these subcarriers. OFDM offers high spectral efficiency, robustness against frequency-selective fading, and the ability to mitigate inter-symbol interference.
2. Filtered OFDM (F-OFDM): F-OFDM is a variant of OFDM that introduces pulse shaping to reduce out-of-band emissions. It employs a filter on the subcarriers to reduce the side lobes, which helps to improve spectral efficiency and minimize interference with adjacent frequency bands.
3. Generalized Frequency Division Multiplexing (GFDM): GFDM is a modulation scheme that provides a flexible framework for waveform design in wireless communication systems. It uses overlapping subcarriers with a controlled amount of overlap to achieve good frequency localization and reduce out-of-band emissions. GFDM offers low latency, high spectral efficiency, and the ability to support varying channel conditions.
4. Sparse Code Multiple Access (SCMA): SCMA is a non-orthogonal multiple access technique that allows multiple users to share the same time and frequency resources by assigning unique signature codes to each user. SCMA offers high spectral efficiency, low latency, and the ability to support a large number of connected devices, making it suitable for future dense networks.
5. Polar Modulation: Polar modulation is a flexible modulation scheme that combines amplitude and phase modulation to transmit data. It allows for dynamic adaptation of modulation schemes based on the signal conditions, resulting in efficient use of the available spectrum and improved energy efficiency.
6. Advanced Modulation Schemes: Researchers are also exploring advanced modulation schemes, such as quadrature amplitude modulation (QAM) with higher-order constellations and non-linear modulation techniques, to achieve higher data rates and spectral efficiency in 6G.

It's important to note that the selection of modulation schemes for 6G will depend on various factors, including spectral efficiency, energy efficiency, resilience to interference, and compatibility with the specific requirements of future use cases and applications. The final modulation schemes for 6G will be determined through standardization efforts and further research and development in the field.

There are a number of different modulation schemes that are being considered for 6G. Some of the most promising modulation schemes include:

• Orthogonal Frequency Division Multiplexing (OFDM): OFDM is a modulation scheme that divides the data stream into multiple orthogonal subcarriers. This allows for efficient use of the spectrum and high data rates.
• Filtered OFDM (F-OFDM): F-OFDM is a variation of OFDM that uses filters to improve the performance of the modulation scheme in the presence of noise and interference.
• Space-Frequency Coding (SFC): SFC is a modulation scheme that combines OFDM with space-time coding. This allows for improved performance in mobile environments.
• Multi-dimensional modulation (MDM): MDM is a modulation scheme that uses multiple dimensions, such as time, frequency, and space, to transmit data. This allows for even higher data rates than traditional modulation schemes.
• Orthogonal Time Frequency Space (OTFS): OTFS is a modulation scheme that combines OFDM with time-frequency coding. This allows for improved performance in mobile environments and at high data rates.

The choice of modulation scheme for 6G will depend on a number of factors, including the desired data rate, range, and performance.

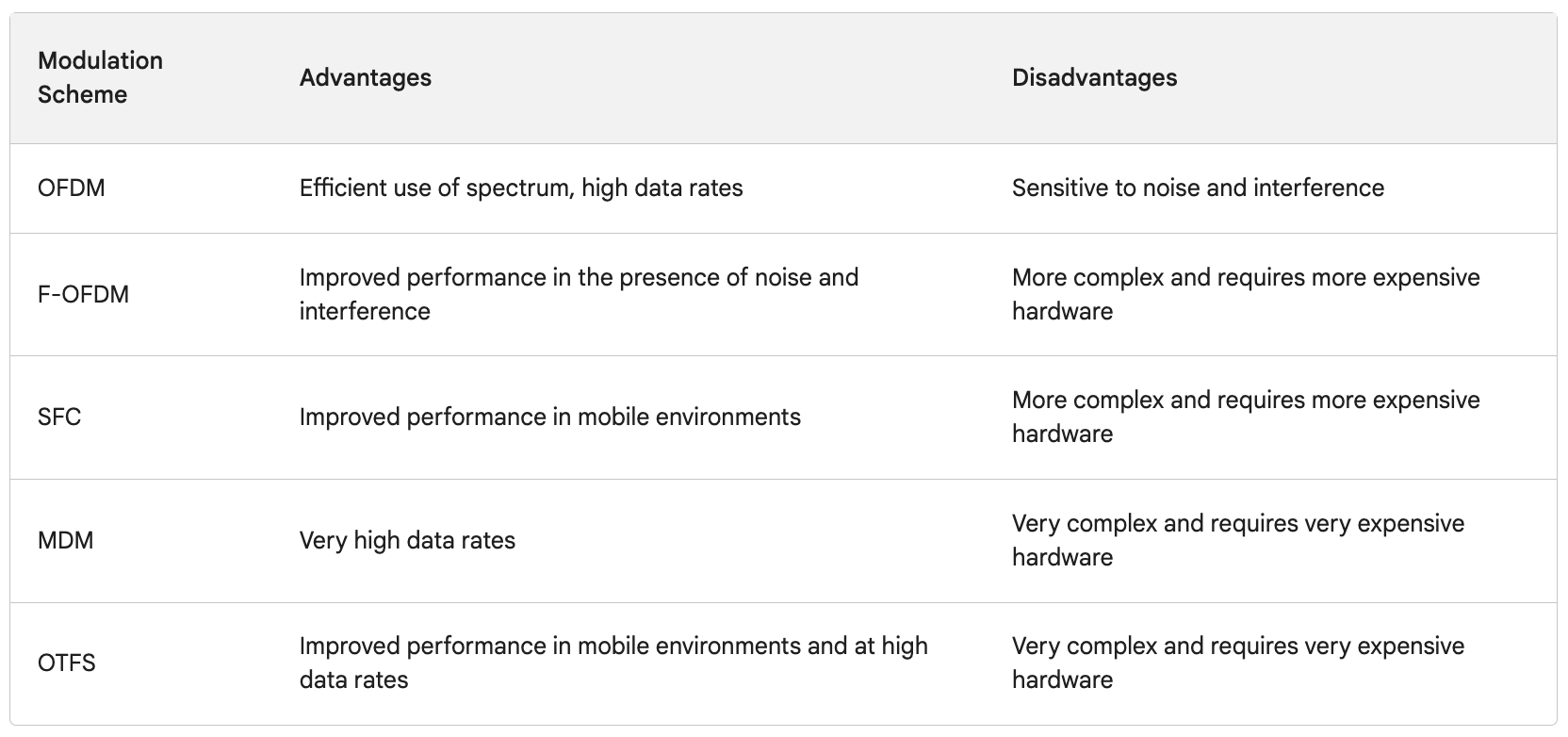

Here is a table that summarizes the advantages and disadvantages of some of the modulation schemes that are being considered for 6G:

It is important to note that these are just some of the modulation schemes that are being considered for 6G. It is still too early to say which modulation scheme will be used for 6G. However, it is clear that modulation schemes that can achieve high data rates, long ranges, and good performance in the presence of noise and interference will be important for 6G.
