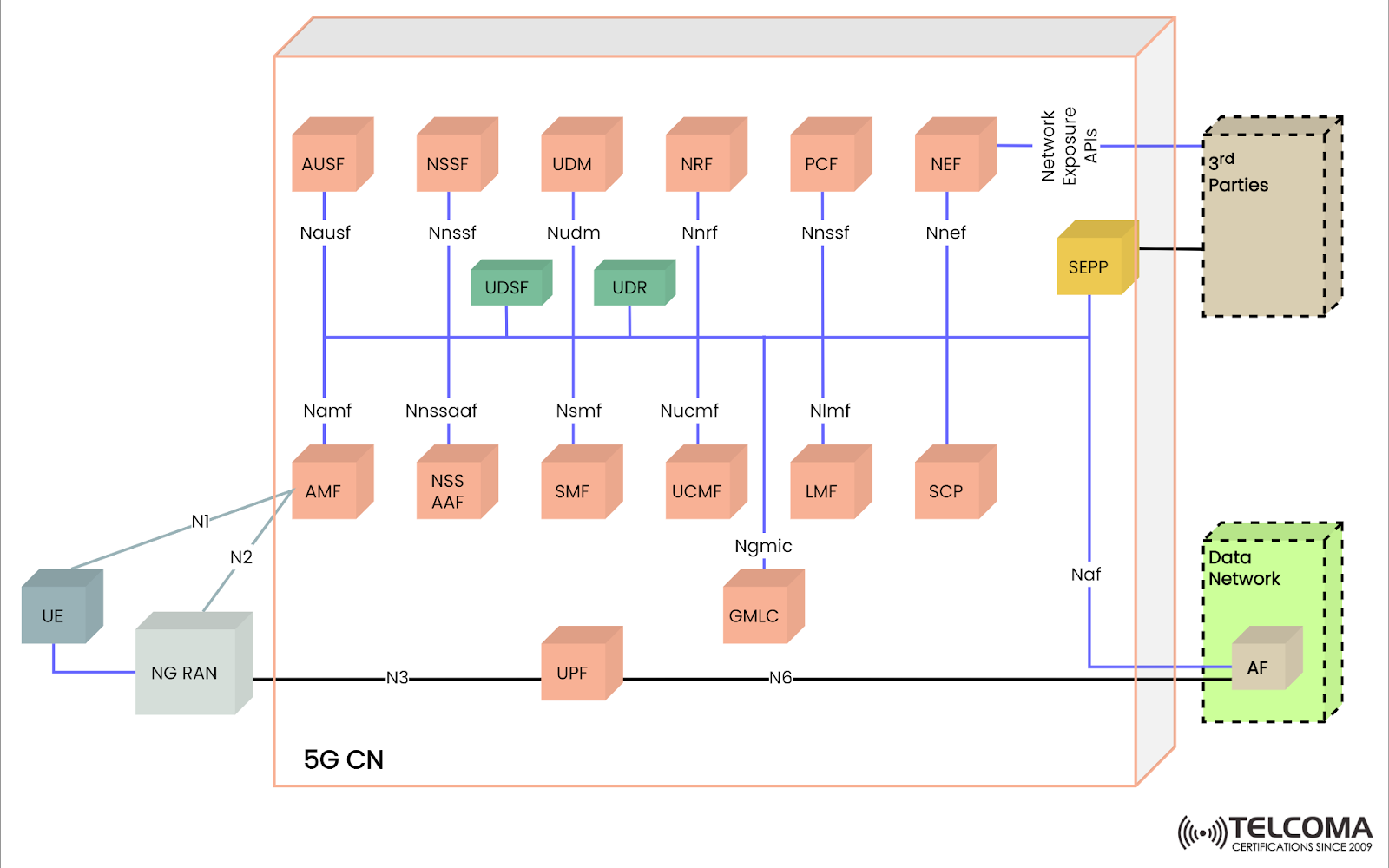

5G network architecture refers to the overall structure and organization of a fifth-generation (5G) cellular network. It defines how different network components and entities are interconnected to enable the delivery of high-speed data, low latency, and a wide range of services. The 5G network architecture is designed to support a diverse set of use cases, including enhanced mobile broadband, massive machine-type communications, and ultra-reliable low-latency communications. Here is a detailed explanation of the key elements of 5G network architecture:
User Equipment (UE):
The User Equipment, also known as the end-user device, represents the devices used by individuals to connect to the 5G network. These devices include smartphones, tablets, laptops, IoT devices, and other wireless devices capable of communicating over 5G.
Radio Access Network (RAN):
The Radio Access Network is responsible for establishing and maintaining wireless communication between the user equipment and the core network. It consists of base stations, antennas, and other equipment deployed in a geographical area to provide wireless coverage. In 5G, the RAN includes two main components:
a. gNB (Next-Generation NodeB):
The gNB, also known as the base station or eNodeB, is responsible for transmitting and receiving wireless signals to and from user equipment. It supports advanced features like beamforming, massive MIMO (Multiple-Input Multiple-Output), and carrier aggregation to enhance network capacity and coverage.
b. NG-RAN (Next-Generation RAN):
NG-RAN refers to the overall RAN architecture that includes gNBs and other supporting elements. NG-RAN facilitates the coordination and management of multiple gNBs to ensure seamless connectivity and efficient use of network resources.
Core Network (CN):
The Core Network serves as the central part of the 5G architecture, responsible for handling various network functions, service delivery, and management. The 5G Core Network (5GC) consists of several key components:
a. AMF (Access and Mobility Management Function):
AMF manages the mobility of user equipment, including initial network access, authentication, and session mobility between different access points.
b. UPF (User Plane Function):
UPF is responsible for handling the user data traffic, including packet routing, forwarding, and traffic optimization. It ensures efficient and low-latency data transmission between the user equipment and external networks.
c. SMF (Session Management Function):
SMF controls the session management and service delivery aspects of the 5G network. It handles the establishment, modification, and termination of user sessions, as well as service policy enforcement.
d. PCF (Policy Control Function):
PCF manages the policy control and enforcement within the 5G network. It ensures that the network resources are allocated appropriately based on service requirements and user preferences.
e. NRF (NF Repository Function):
NRF serves as a central repository of network function information. It provides a catalog of available network functions and their capabilities, enabling dynamic service orchestration and network slicing.
f. AUSF (Authentication Server Function):
AUSF handles user authentication and security-related functions. It authenticates users, verifies their access rights, and ensures secure communication within the network.
g. UDM (Unified Data Management):
UDM is responsible for managing user-related data and subscriber profiles within the 5G network. It stores user information, access credentials, and service-specific data.
h. NEF (Network Exposure Function):
NEF provides interfaces for third-party applications and services to interact with the 5G network. It enables the exposure of network capabilities and data to external entities, fostering innovation and new service development.
Service-Based Architecture (SBA):
5G network architecture adopts a service-based approach, where network functions are decoupled and organized as modular services. This enables flexible service composition, scalability, and rapid deployment of new services. The Service-Based Architecture facilitates network slicing, where multiple virtual networks are created to cater to specific service requirements.
Network slicing allows the partitioning of the 5G network into multiple logical networks, each tailored to specific use cases or service types. Each network slice is an independent, virtual network instance with its own set of resources, QoS (Quality of Service) parameters, and network functions. Network slicing enables efficient resource allocation, isolation, and customization to support diverse service requirements.
The 5G network architecture is designed to be highly flexible, scalable, and capable of supporting a wide range of applications and services. It leverages advanced technologies like software-defined networking (SDN), network function virtualization (NFV), and cloud-native architectures to achieve agility, efficiency, and improved network performance. This architecture enables operators to deliver enhanced user experiences, enable new business models, and support the growing demands of the digital era.
